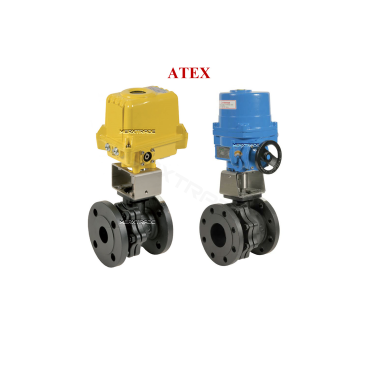

Ball valve split body flange steel Fire-safe with electric actuator 230V-AC ATEX
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
PTFE
DIN
| Model: | Split body Fire-Safe | Material: | Steel - A216WCB |
| Connection: | Flange PN10/16 | Material ball: | St. St. - A351 CF8M |
| Temperature: | -20 °C / + 230 °C | Material seat: | Pure PTFE TFM 1600 ( PMD FF ) |
| Actuator: | 230V-AC IP67 ATEX | Cover: | Epoxy aluminium |
| ATEX class: | II 2G EEx d II B T4 zones 1 and 2 |
| Use: Shipbuilding, marine, industry, agriculture, heating systems |
Datasheet (PDF)
| SKU | MXT-7520033000 |
|---|
| Body material | Carbon steel-A216WCB |
|---|---|
| Disc / Ball / Wedge | CF8M-316 |
| Seat | RTFE |
